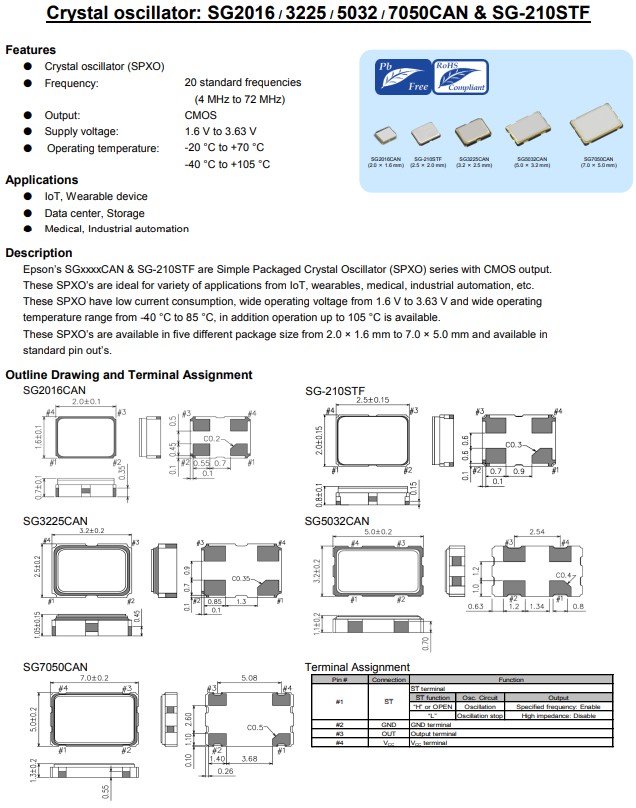

SG-210STF 25.000000MHzL /2520 CMOS/-40+85℃
頻率：4MHZ-72MHZ

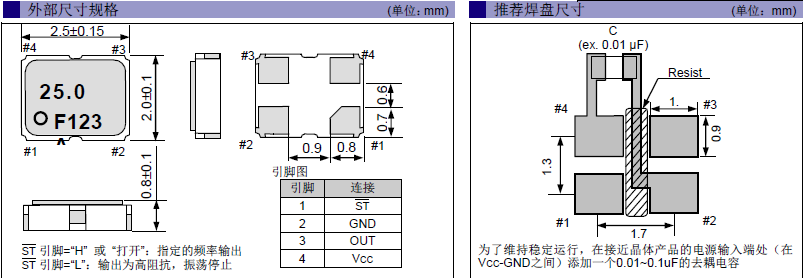

尺寸：2.5mm*2.0mm
日本愛普生晶振集團不斷改進設計,優化工藝,調整工廠布局,采取相應措施,減少各種污染環境的因素,盡可能地節省資源和能源,積極保護廠區和周圍地區的環境,在本公司石英晶振,貼片晶振,壓電石英晶體,有源2520貼片晶振的生產與經營過程中充分考慮對環境的影響,為人類的健康生存和持續發展作出貢獻.
小型SMD有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,日本進口晶振SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V 5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
石英晶振多層、多金屬的濺射鍍膜技術:是目前研發及生產高精度、貼片晶振高穩定性石英晶體元器件——石英晶振必須攻克的關鍵技術之一.該選用何鍍材、鍍幾種材料、幾種鍍材的鍍膜順序,鍍膜的工藝方法(如各鍍材的功率設計等).使用此鍍膜方法使鍍膜后的晶振附著力增強,貼片晶振頻率更加集中,能控制在最小ppm之內.
SG-210STF25.000000MHzL /2520CMOS/-40+85℃愛普生晶振,智能手機晶振
編碼
Model/型號
Frequency/頻率
LxWxH/尺寸
Output Wave/輸出方式
Supply Voltage/電源電壓
Ope Temperature/工作溫度
Freq. Tol./頻率偏差
X1G0041710002
SG-210STF
33.300000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710005
SG-210STF
1.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710006
SG-210STF
1.843200 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710007
SG-210STF
2.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710008
SG-210STF
3.686400 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710009
SG-210STF
4.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710010
SG-210STF
4.096000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710011
SG-210STF
5.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710012
SG-210STF
6.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710013
SG-210STF
6.144000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710014
SG-210STF
7.372800 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710015
SG-210STF
8.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710016
SG-210STF
10.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710017
SG-210STF
11.289600 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710018
SG-210STF
12.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710019
SG-210STF
12.288000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710020
SG-210STF
12.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710021
SG-210STF
13.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710022
SG-210STF
13.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710023
SG-210STF
13.560000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710024
SG-210STF
14.318180 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710025
SG-210STF
14.745600 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710026
SG-210STF
15.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710027
SG-210STF
16.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710028
SG-210STF
19.200000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710029
SG-210STF
20.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710030
SG-210STF
22.579200 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710031
SG-210STF
24.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710032
SG-210STF
24.576000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710033
SG-210STF
25.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710034
SG-210STF
26.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710035
SG-210STF
27.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710036
SG-210STF
27.120000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710037
SG-210STF
28.636360 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710038
SG-210STF
29.491200 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710039
SG-210STF
30.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710040
SG-210STF
32.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710041
SG-210STF
33.333000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710042
SG-210STF
36.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710043
SG-210STF
37.400000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710044
SG-210STF
38.400000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710045
SG-210STF
40.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710046
SG-210STF
48.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710047
SG-210STF
50.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710048
SG-210STF
52.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710049
SG-210STF
54.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710052
SG-210STF
8.192000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710055
SG-210STF
26.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710059
SG-210STF
25.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710069
SG-210STF
8.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710075
SG-210STF
33.333300 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710077
SG-210STF
25.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710078
SG-210STF
48.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710079
SG-210STF
50.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710080
SG-210STF
66.666700 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710081
SG-210STF
75.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710083
SG-210STF
1.200000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710084
SG-210STF
1.228800 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710085
SG-210STF
1.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710086
SG-210STF
1.536000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710087
SG-210STF
2.048000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710088
SG-210STF
2.457600 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710089
SG-210STF
2.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710090
SG-210STF
3.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710091
SG-210STF
3.072000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710092
SG-210STF
3.125000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710093
SG-210STF
3.579545 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710094
SG-210STF
4.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710095
SG-210STF
4.800000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710096
SG-210STF
4.915200 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710097
SG-210STF
5.644800 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710098
SG-210STF
6.250000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710099
SG-210STF
6.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710100
SG-210STF
6.750000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710101
SG-210STF
6.780000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710102
SG-210STF
7.159090 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710103
SG-210STF
7.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710104
SG-210STF
8.250000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710105
SG-210STF
9.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710106
SG-210STF
9.600000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710107
SG-210STF
9.830400 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710108
SG-210STF
15.625000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710109
SG-210STF
16.384000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710110
SG-210STF
16.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710111
SG-210STF
16.650000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710112
SG-210STF
16.666500 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710113
SG-210STF
18.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710114
SG-210STF
19.440000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710115
SG-210STF
19.660800 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710116
SG-210STF
31.250000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710117
SG-210STF
32.768000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710118
SG-210STF
33.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710119
SG-210STF
33.330000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710120
SG-210STF
33.333300 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710121
SG-210STF
62.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710122
SG-210STF
66.667000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710124
SG-210STF
72.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710125
SG-210STF
74.176000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710126
SG-210STF
50.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710127
SG-210STF
32.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710128
SG-210STF
4.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-100 ppm
X1G0041710136
SG-210STF
27.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710140
SG-210STF
16.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710141
SG-210STF
13.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710144
SG-210STF
33.330000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710146
SG-210STF
6.780000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710147
SG-210STF
13.560000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710151
SG-210STF
66.670000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710152
SG-210STF
27.120000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710153
SG-210STF
1.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710154
SG-210STF
16.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710155
SG-210STF
8.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-100 ppm
X1G0041710156
SG-210STF
24.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710159
SG-210STF
9.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710162
SG-210STF
10.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710163
SG-210STF
12.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710164
SG-210STF
14.318000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710165
SG-210STF
14.318000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710188
SG-210STF
37.125000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710189
SG-210STF
74.250000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710192
SG-210STF
54.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710193
SG-210STF
74.250000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710195
SG-210STF
48.896000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710196
SG-210STF
66.660000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710197
SG-210STF
24.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710198
SG-210STF
16.384000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710199
SG-210STF
66.666700 MHz
2.50 x 2.00 x 0.90 mm
CMOS
2.200 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710201
SG-210STF
48.896000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710202
SG-210STF
33.333333 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710203
SG-210STF
48.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710204
SG-210STF
48.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-100 ppm
X1G0041710205
SG-210STF
22.579200 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710206
SG-210STF
40.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710209
SG-210STF
2.400000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710220
SG-210STF
33.333333 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710221
SG-210STF
66.666600 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710222
SG-210STF
66.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.710 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710223
SG-210STF
7.680000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710225
SG-210STF
32.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710226
SG-210STF
28.636300 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710227
SG-210STF
19.200000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710228
SG-210STF
45.158400 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710229
SG-210STF
30.720000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710232
SG-210STF
66.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
2.200 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710238
SG-210STF
20.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710239
SG-210STF
75.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
2.200 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710241
SG-210STF
25.006250 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710242
SG-210STF
32.768000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710244
SG-210STF
26.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710245
SG-210STF
24.576000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710250
SG-210STF
27.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710251
SG-210STF
66.666600 MHz
2.50 x 2.00 x 0.90 mm
CMOS
2.200 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710252
SG-210STF
60.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710253
SG-210STF
16.384000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710254
SG-210STF
15.360000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710256
SG-210STF
13.333300 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710257
SG-210STF
30.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710262
SG-210STF
37.125000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710263
SG-210STF
18.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710264
SG-210STF
12.500000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710266
SG-210STF
1.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-100 ppm
X1G0041710268
SG-210STF
2.048000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-100 ppm
X1G0041710269
SG-210STF
4.096000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710278
SG-210STF
13.330000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710279
SG-210STF
15.360000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710280
SG-210STF
12.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710281
SG-210STF
33.333000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710282
SG-210STF
36.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710283
SG-210STF
45.158000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710284
SG-210STF
49.152000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710287
SG-210STF
44.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 85 °C
+/-50 ppm
X1G0041710288
SG-210STF
16.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-100 ppm
X1G0041710293
SG-210STF
30.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710294
SG-210STF
2.457600 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710297
SG-210STF
4.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-20 to 70 °C
+/-25 ppm
X1G0041710298
SG-210STF
33.333333 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710299
SG-210STF
4.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710300
SG-210STF
33.330000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710304
SG-210STF
10.000000 MHz
2.50 x 2.00 x 0.90 mm
CMOS
1.600 to 3.600 V
-40 to 105 °C
+/-50 ppm
X1G0041710061
SG-210STF
12.288000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-20 to 70 °C
+/-25 ppm
X1G0041710218
SG-210STF
20.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-20 to 70 °C
+/-25 ppm
X1G0041710365
SG-210STF
10.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
+/-50 ppm
X1G0041710366
SG-210STF
12.288000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
+/-50 ppm
X1G0041710367
SG-210STF
14.745600 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
+/-50 ppm
X1G0041710368
SG-210STF
24.576000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
+/-50 ppm
X1G0041710369
SG-210STF
48.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
+/-50 ppm
X1G0041710370
SG-210STF
72.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
1.710 to 3.630 V
-20 to 70 °C
+/-25 ppm
X1G0041710371
SG-210STF
72.000000 MHz
2.50 x 2.00 x 0.80 mm
CMOS
2.250 to 3.630 V
-40 to 105 °C
+/-50 ppm
|
項目 |
符號 |
規格說明 |
條件 |
|
輸出頻率范圍 |
f0 |
4~72MHZ |
請聯系我們以便獲取其它可用頻率的相關信息X1G0041710033 |
|
電源電壓 |
VCC |
1.6~3.63V |
請聯系我們以了解更多相關信息 |
|
儲存溫度 |
T_stg |
-40℃ to +125℃ |
裸存 |
|
工作溫度 |
T_use |
G: -20℃ to +70℃ |
請聯系我們查看更多資料http://www.ellentracy.cn |
|
H: -40℃ to +85℃ |
|||
|
J: -40℃ to +105℃ |
|||
|
頻率穩定度 |
f_tol |
J: ±25 × 10-6 |
|
|
L: ±50 × 10-6 |
|||
|
功耗 |
ICC |
3.5 mA Max. |
無負載條件、最大工作頻率 |
|
待機電流 |
I_std |
3.3μA Max. |
ST=GND |
|
占空比 |
SYM |
45 % to 55 % |
50 % VCC 極, L_CMOS≦15 pF |
|
輸出電壓 |
VOH |
VCC-0.4V Min. |
|
|
VOL |
0.4 V Max. |
|
|
|
輸出負載條件 |
L_CMOS |
15 pF Max. |
|
|
輸入電壓 |
VIH |
80% VCC Max. |
ST 終端 |
|
VIL |
20 % VCC Max. |
||
|
上升/下降時間 |
tr / tf |
4 ns Max. |
20 % VCC to 80 % VCC 極, L_CMOS=15 pF |
|
振蕩啟動時間 |
t_str |
3 ms Max. |
t=0 at 90 % |
|
頻率老化 |
f_aging |
±3 × 10-6 / year Max. |
+25 ℃, 初年度,第一年 |
深圳市壹兆電子科技有限公司聯系人：龔成 電話：0755--27876236
QQ：769468702
手機：13590198504
郵箱:zhaoxiandz@163.com
網站:http://www.ellentracy.cn
SG-210STF25.000000MHzL /2520CMOS/-40+85℃
采購：SG-210STF 25.000000MHzL /2520 CMOS/-40+85℃
- *聯系人：
- *手機：
- 公司名稱：
- 郵箱：
- *采購意向：
-
*驗證碼：
跟此產品相關的產品 / Related Products
晶振廠家
臺產晶振
日產晶振
歐美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德
- 高利奇晶振
- Jauch晶振
- AbraconCrystal
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal
- IDTcrystal晶振
- Pletronics晶振
- Statek晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- FOX晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韓國三呢晶振
- ACT晶振
- MTI-Milliren晶振
- LiHom晶振
- Rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- ITTI晶振
- PDI晶振
- C-TECH晶振
- KVG晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- Skyworks晶振
- Renesas瑞薩晶振
32.768K
有源晶振
貼片晶振
應用領域
電話：86-0755-27876236
手機：135-9019-8504
QQ：769468702
地址：中國廣東深圳市寶安區沙井街道上星咸夫大廈F座2號903
